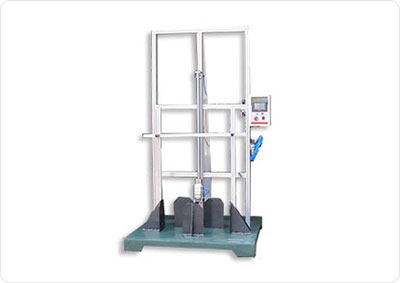

» 9021 pull rod reciprocating fatigue test machine (pneumatic)
- Standard: QB/T2919-2007
Patent number: 200630189727.5
Suitcase pull rod reciprocating fatigue testing machine uses: suitcase pull rod reciprocating fatigue testing machine for all kinds of luggage pull rod to do reciprocating expansion test, test by the constantly continuous stretching movements, to test rod gap, loose off or connection rod failure and deformation. Suitable for NIKE, Adidas, Samsonite and other standards. - Technical specification:
Test schedule：0~100cm, adjustable
Drawing speed：Maximum cm/sec 0~60, can be adjusted
Compression speed：Maximum cm/sec 0~60, can be adjusted
Test times：0~999999 automatic stop
Test drive：Air pressure cylinder (Note: computer type as servo motor)
Accuracy of measurement：0.01kg
Sensing position：Four point sensing position
Specimen height：Maximum 200cm
Auxiliary equipment：Fixed clip seat
Use pressure：5~8kg/cm2
Machine size：120X120X210cm (WXDXH)
Weight：155kg
Use power：1PH, AC220V, 5A, 50/60Hz
Extended function：With special software, can be a computer upgrade.
